Tower Crane Characteristics

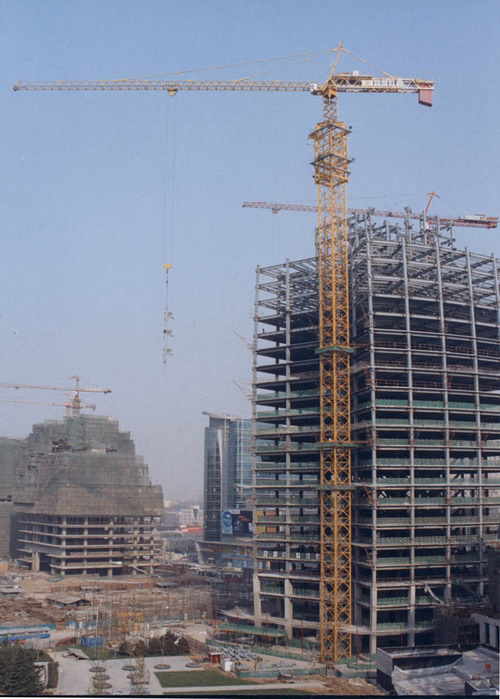

QTZ100(TC6013) tower crane is hoisting and conveying machinery which is designed by Shandong Fuyou Co., Ltd. by fully utilizing the group technology, the combinational design technology and the finite element analysis technology and taking the tower crane microcomputer design platform as a tool and has excellent performance.
The crane is a horizontal-arm-rest trolley-amplitude upper-revolution hydraulic lifting type crane which has the maximum working amplitude of 60m, the independent lifting height of 45m, the adhesion lifting height of 151.2m, the rated lifting moment of 1000kN?m and the maximum lifting moment of 1,057kN?m. All the performance parameters and technical indexes of the crane meet or surpass national standards.
The crane features advanced parameters, excellent and reliable properties, attractive appearance, high quality, simple and practical structures, advanced safety devices, convenient maintenance, safe usage and reasonable prices, and is ideal construction machinery for many construction enterprises.
Product Parameter
Rated lifting torgue | kN.m | 1000 | ||||||
Max. Lifting load | t | 8 | ||||||
Working Range | m | 3~60 | ||||||
Lifting height | Independent/adhered | 45.9/215 | ||||||
Lifting speed | 2-fall | m/min | 80.36/41.05 | |||||
4-fall | 39.37/20.11 | |||||||
Slewing speed | r/min | 0.58 | ||||||
Ranging Speed | m/min | 40/20/10 | ||||||
Jacking speed | 0.4 | |||||||
outline dimensions | Overall weight | basic | 54.4 | |||||
adhered | 222.4 | |||||||
boom jib tip to the slewing center | 61.2 | |||||||
jib end of balance tip to slewing center | 13.9 | |||||||
total mass | structured | basic | t | 42.36 | ||||
adhered | 108.1 | |||||||
weight of counterweight | m/t | 60/14.8 | 55/13.46 | 50/12.12 | ||||
power | kW | 47.4 | ||||||
allowed temperature | ºC | -20~+40 | ||||||
power performance | 50Hz | ~380V±10% |
Main technical parameter
mechanical load | hoisting mechanism | M5 | |||
slewing mechanism | M4 | ||||
ranging mechanism | M4 | ||||
Hoisting mechanism | motor | type | YZRDW250M-4/8 | ||
power (kW) | 30/30 | ||||
limiter of height | type | FKDX-G | |||
steel line | specification | φ15 | |||
fall | a=2 | a=4 | |||
hoisting speed (m/min) | 80.36 | 41.05 | 39.37 | 20.11 | |
lifting capacity (t) | 2 | 4 | 4 | 8 | |
slewing mechanism | motor | type | YZR132M1-6 | ||
power (kW) | 3.7×2 | ||||
Speed(r/min) | 908 | ||||
reducer | type | XX4-100.180 | |||
ratio | 180 | ||||
hydraulic couplings | type | YOX280A | |||
slewing pinions | modulus m | 12 | |||
teeth z | 15 | ||||
coefficient | +0.5 | ||||
slewing speed | r/min | 0.58 | |||
slewing bearing | ball like slewing ring of four point in a ling | type | 011·45·1400 | ||
modulus m | 12 | ||||
teeth z | 131 | ||||
hydraulic hoisting mechanism | motor | type | Y132M-4B5 | ||
power (kW) | 5.5 | ||||
rated operating press | Mpa | 25 | |||
max. hoisting force | t | 50 | |||
troke of oil tank | mm | 1600 | |||
mounting distance | mm | 2070 | |||
Cylinder bore | mm | φ160 | |||
Oil cylinder piston rod diameter | mm | φ110 | |||
hoisting speed | m/min | 0.4 | |||
ranging mechanism | motor | type | YEDE132L-4/8/16.B5 | ||
power (kW) | 3.3/2.2/1.1 | ||||
steel line | specification | 6×19-7.7-1550- | |||
reducer | type | XX2-12-38 | |||
ratio | 38 | ||||
ranging speed | m/min | 40/20/10 |
Our services
1. Customized service. We can do all special design according to your requirement
2. welcome visit our factory, learn about our factory and products.
3. 24 hours on line or phone , technical support
After sale service
1. We provide free spare part with equipment and send Technicians to maintenance when necessary.
2. The Seller will send one of her experienced engineer to the Buyer's site to help the
completed installation works and training operators under the requirement of the Buyer.
3. 12(twelve)months (except for wire rope and AC contactor) after the equipment be well erected and we will offer spare parts whole year long.
4. lifelong time freely provide technical support .
If you want to buy tower crane,and find china tower crane dealer and tower crane seller, our factory is you best selected. Welcome for your inquiry. We will supply the high quality tower crane of reasonable price. Sincerely welcome your inquiry to our products!
